Retractable Awning System Supply: Common Issues And Solutions

WIL LIAM WONG • July 26, 2023

Retractable awnings provide shade and protection from the elements, making outdoor spaces more comfortable and enjoyable. These awnings rely on a power supply system to extend and retract the fabric. However, like any electrical system, issues can arise that affect the functionality of the awning.

In this article, we will explore the common issues with retractable awning power supply systems and provide troubleshooting techniques and steps to fix these problems.

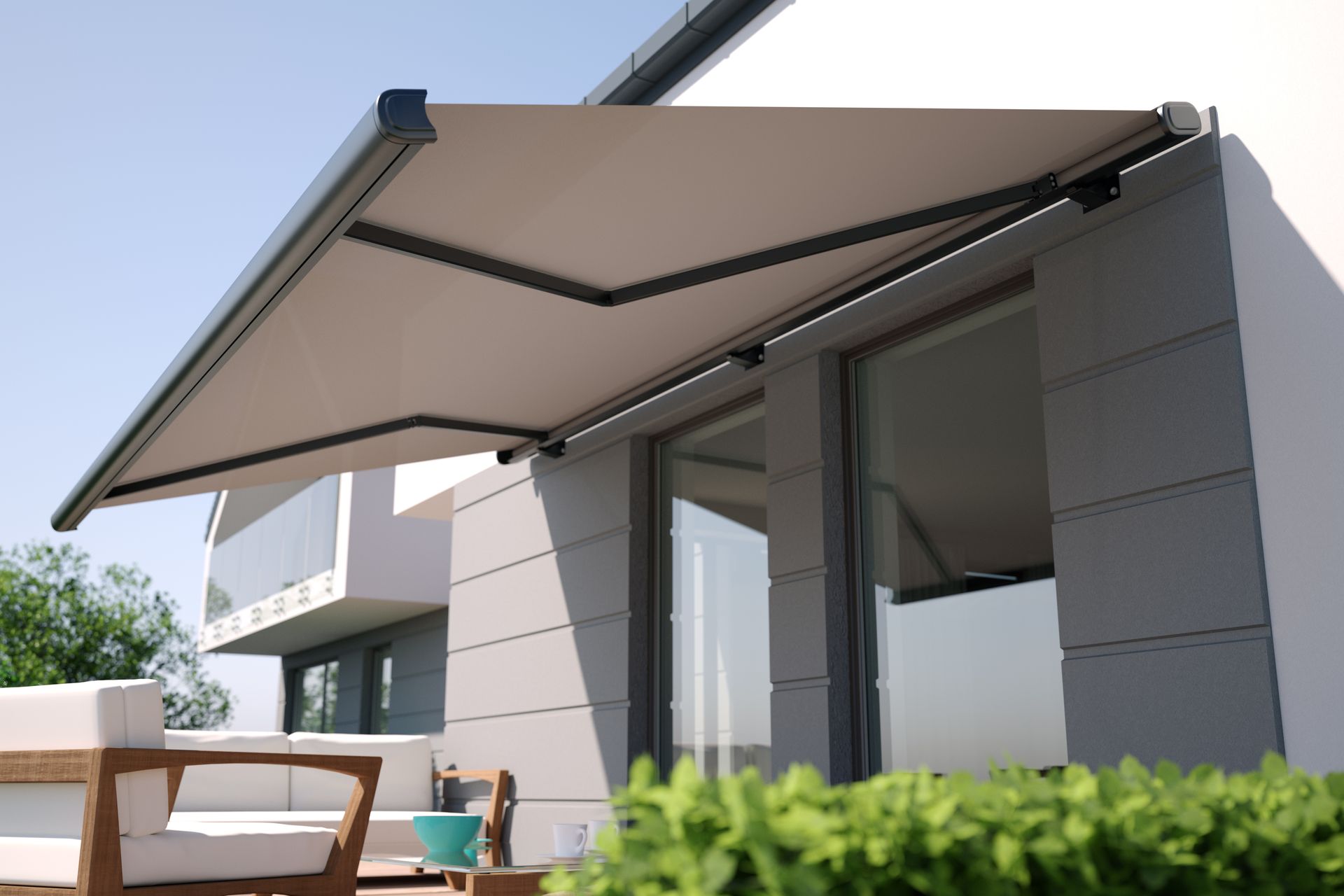

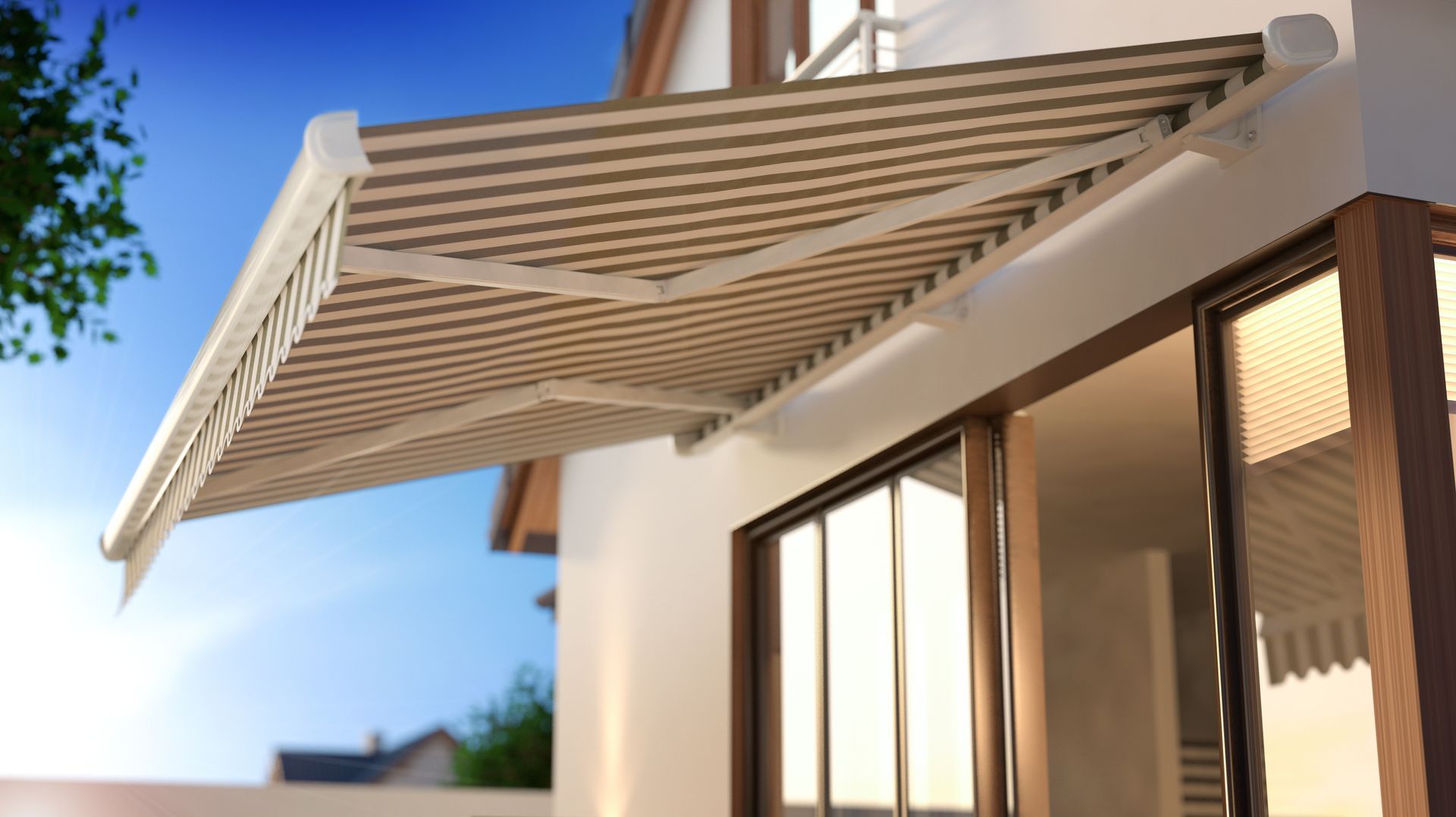

Common issues with retractable awning power supply systems

Retractable awning systems provide a convenient way to enjoy outdoor spaces while staying protected from the sun and rain. However, these systems rely on their power supply to function properly, and issues can arise that disrupt their operation.

Let’s explore the common issues that can occur with retractable awning power supply systems, as understanding these common issues will help you troubleshoot and address problems with your retractable awning system effectively.

Motor failure

The motor is a crucial component of the retractable awning system that drives the extension and retraction mechanism. Over time, motors can fail due to wear and tear or electrical malfunctions. When the motor fails, the awning may become stuck in one position or stop working altogether.

Control system malfunction

The control system is responsible for receiving signals and commanding the motor to extend or retract the awning. A malfunctioning control system can result in the awning not responding to commands or experiencing erratic movement. This can be caused by faulty wiring, damaged control panels, or issues with the remote control.

Electrical issues

Retractable awning power supply systems rely on electricity to function properly. Electrical issues such as short circuits, loose connections, or power surges can disrupt the system's performance. These issues can lead to intermittent operation, flickering lights, or a complete loss of power.

Battery failure

Many retractable awning systems feature backup batteries that allow operation even during power outages. If the batteries are not regularly maintained or replaced, they can lose their capacity and fail to provide sufficient power. This can result in the awning being unable to extend or retract when needed.

Wiring problems

The wiring in the power supply system is responsible for transmitting electrical signals between components. Poorly installed or damaged wiring can cause disruptions in the system's functionality. Common wiring problems include loose connections, frayed wires, or wires chewed by pests.

Troubleshooting techniques for retractable awning power supply systems

When your retractable awning power supply system encounters a problem, it's important to have troubleshooting techniques at your disposal.

Here are some troubleshooting techniques you can follow to help you narrow down the root cause of the problem and take appropriate action to resolve it.

Check the power source

Start by checking the power source for the retractable awning system. Ensure that the circuit breaker or fuse is intact and supplying power. If the power source is working correctly, move on to inspecting other components.

Inspect the motor and control system

Examine the motor and control system for any visible signs of damage or wear. Look for loose wires, disconnected cables, or burnt-out components. If any issues are detected, further troubleshooting or repairs may be necessary.

Replace batteries

If the retractable awning system has backup batteries, check their condition. Replace the batteries if they are old or no longer holding a charge. Ensure that the batteries are properly connected and functioning.

Test the wiring

Carefully inspect the wiring throughout the power supply system. Look for any loose connections, damaged insulation, or exposed wires. Use a multimeter to test the continuity and voltage at various points in the wiring. Replace or repair any faulty wiring as needed.

Reset the system

In some cases, resetting the retractable awning system can resolve minor issues. Locate the reset button or switch on the control panel or motor and press it. This can help recalibrate the system and restore proper functionality.
